Designed for
use with 4x4 Post Sleeves over Wood posts
36" Rail
Height = 10 Cable Runs
42" Rail
Height = 11 Cable Runs

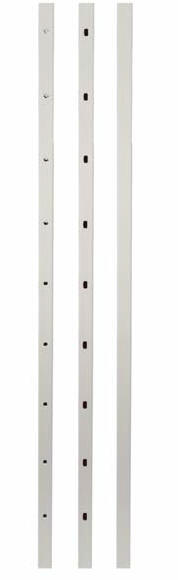

Cable Braces
Aluminum Cable
Braces are pre-drilled with 12 holes at 3 1/8"
spacing for level and stair runs. Also
available undrilled for unique installations.
Trimmable to any rail height. Cable Braces
are used between posts that are greater than 48"
apart to keep cables from deflecting over 4".
Connectors and Stainless Steel Screws included.

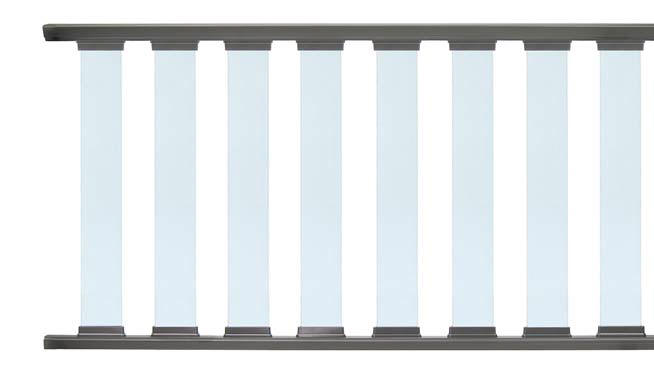

To give your aluminum railings a see-through
appearance, attach glass balusters to the cross rails using the
Glass Baluster Shoe Connectors
6' Rails use 8 balusters, 8'
Rails use 10 balusters
32" Glass Balusters
38" Glass Balusters
Glass Baluster Shoes - 2 Pack
$56.72
$65.45
$6.60
32" Glass Stair Balusters
40' Glass Stair Balusters
Glass Stair Baluster Shoes - 2 Pack
$65.04
$70.80
$7.95
INSTALLATION
ASSISTANCE
Quick Jig - $46.65
Touch-Up Paint
The Quick Jig rail guide allows the installer
to easily locate and fasten rail connectors to the post for
level railing without having to measure or center brackets
manually. Quick Jig can also be used to plumb posts using
the attached 2-way level.
