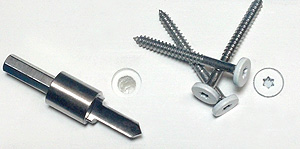

SplitStop Composite Fascia Screw System

FASCIA SCREW INSTALLATION SYSTEM

�	Use the SplitStop Fascia Bit to create an oversized hole and head recess countersink in your fascia material, at the appropriate locations.
�	Use a drill/driver with torsion adjustment settings to drive the screws. Set the torsion adjustment to stall when fascia screws is flush with the surface. Drive a SplitStop fascia screw into the hole created by the fascia bit. Do NOT overdrive screw.
�	Place a screw at the upper left corner of the fascia 2� from the top and continue right placing screws, 24� on center, to the end of the fascia board. Repeat this process 2� from the bottom of the fascia board, BUT start the second screw 12� right of the upper screw. This will form a baseball stitch pattern on the fascia as shown below.
�	Important! Do not over tighten screws.
